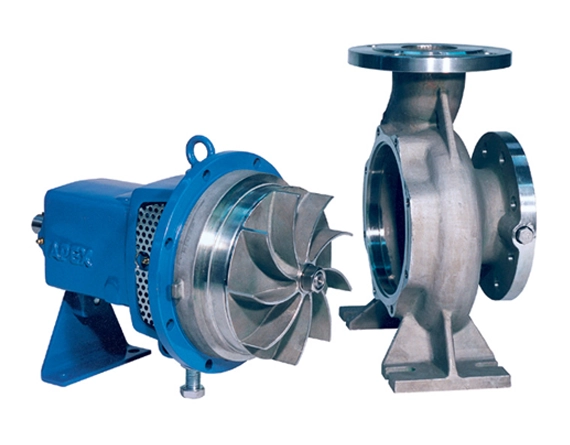

Mechanically Sealed Pumps OVERVIEW
Mechanically Sealed Pumps help move liquids that need strong, reliable handling. They are often used for chemicals, heated water, paint and other demanding fluids.
This pump type uses a mechanical seal to help control leakage around the rotating shaft. As a result, it can support many industrial and process applications where safe fluid movement is important. Pedrollo Distribution can help you choose a suitable model for your system. First, we review the liquid, temperature, pressure and flow rate. Then, we look at the material casing and seal type required.
Options include single, double and cartridge mechanical seals. In addition, different material choices are available to suit the liquid being pumped. Therefore, these pumps can be matched to a wide range of duties. For more information, speak to our team for application-specific advice.

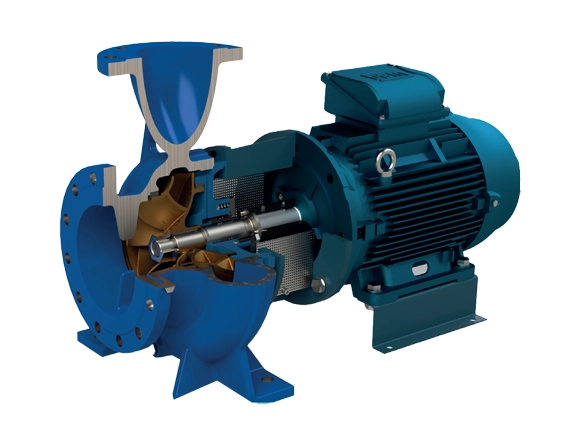

APPLICATIONS
These pump systems suit many demanding applications. For example, they can support chemical transfer, heated water movement, paint handling and industrial process duties.
Some liquids are difficult to seal or transfer safely. However, the right pump design can help improve reliability and reduce operating issues. Pedrollo Distribution supplies high-quality, efficient pumps for a wide range of liquids. In addition, our specialists can provide site visits and practical guidance where needed.
Each application has different requirements. Therefore, we consider the liquid, duty cycle, materials, pressure and flow before recommending a solution. As a result, customers can choose a pump that fits their process more closely. For more information, contact Pedrollo Distribution to discuss your site, system or project.

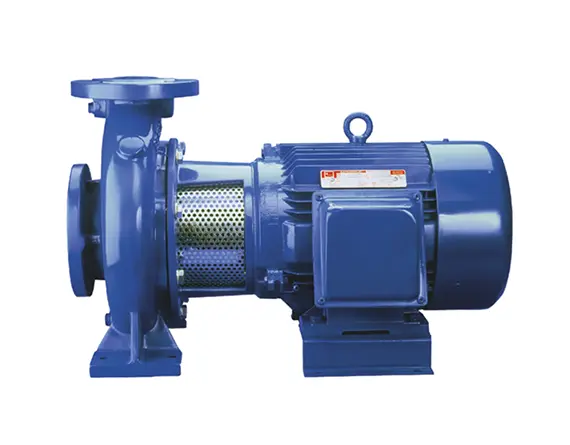

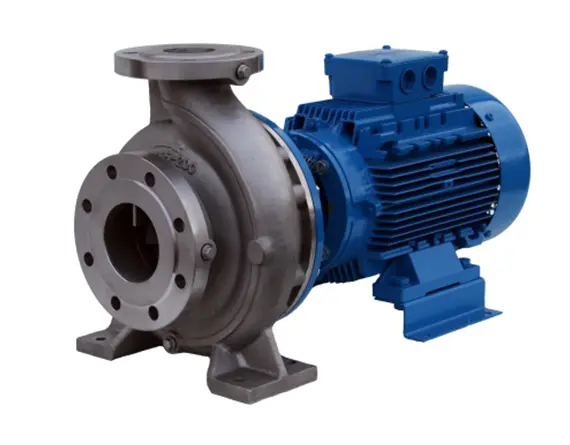

MECHANICALLY SEALED PUMP RANGE
UP05 Metallic
This model supports flow rates up to 900 m³/hr and a generated head of 160 m. It also includes discharge flange sizes from 32 mm to 200 mm. In addition, it follows BS EN ISO 2858:2010, uses a mechanical design to BS EN ISO 5199-2002, and complies with ATEX Directive 2014/34/EU.
UP 05 1/2″ Non-Metallic
This compact model supports flow rates up to 1080 m³/hr. It includes discharge flange sizes from 32 mm to 250 mm and has a small footprint, which helps where space is limited. Furthermore, it requires no alignment and follows DIN 24255, while also complying with ATEX Directive 2014/34/EU.
ISF Pump
This engineered bedplate model supports flow rates up to 900 m³/hr and a generated head of 160 m at 2900 rpm. It includes discharge flange sizes from 32 mm to 200 mm. In addition, it follows DIN 2858 and complies with ATEX Directive 2014/34/EU.
